MSRP
$20,280
Our Price
$17,492
Savings
$2,788
Specifications
| Type | Dump Trailer | Stock No | V1316406 |
| Condition | New | Length | 14.0 ft. |
| Weight | 5136 lbs. | GVWR | 14900 lbs. |
| Model | LPT 207 HEAVY DUTY 14X82 32 SIDES PACESETTER | Make | DIAMOND C |

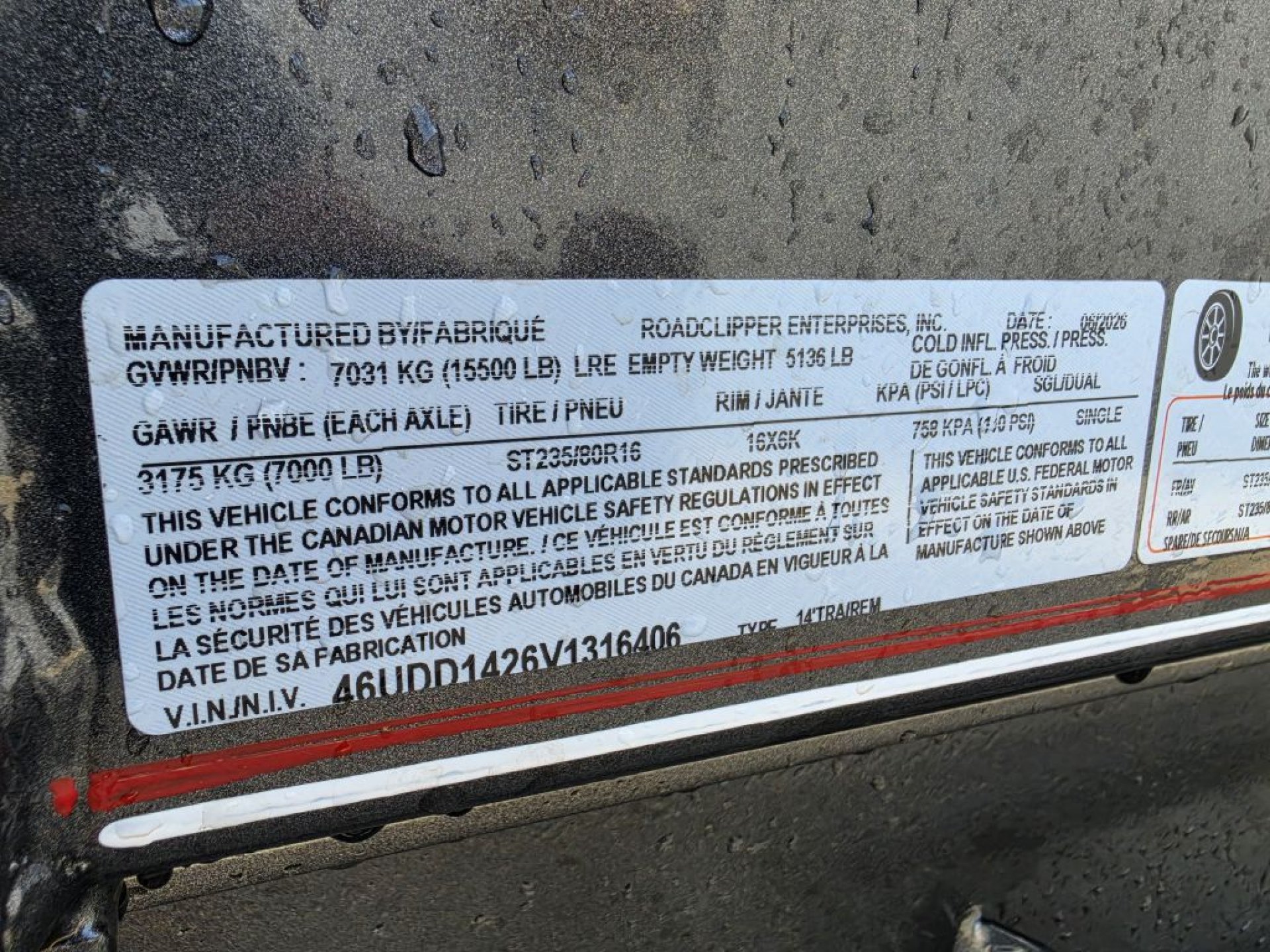

| Year | 2027 | VIN | 46UDD1426V1316406 |
| Location | Anderson |

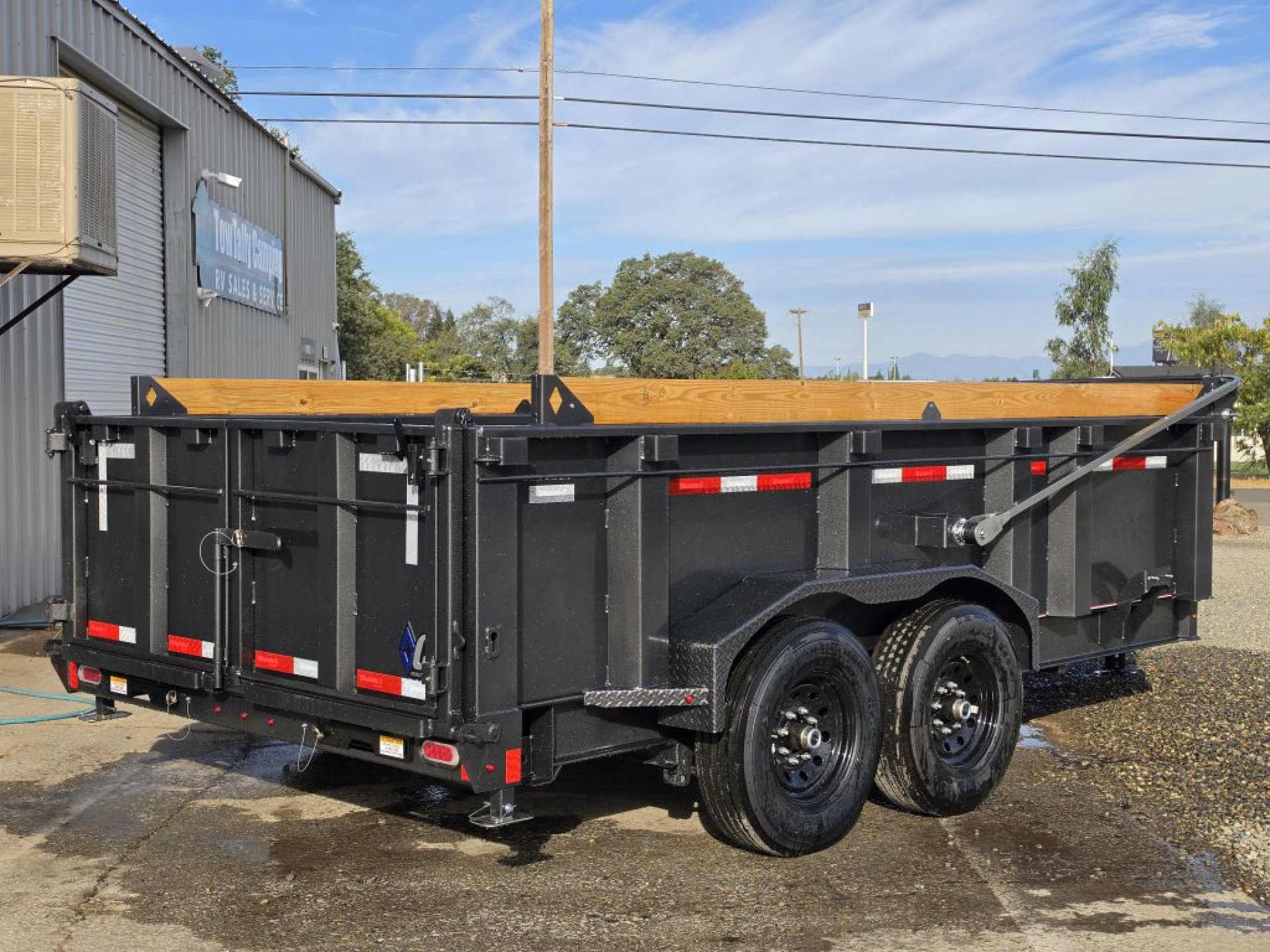

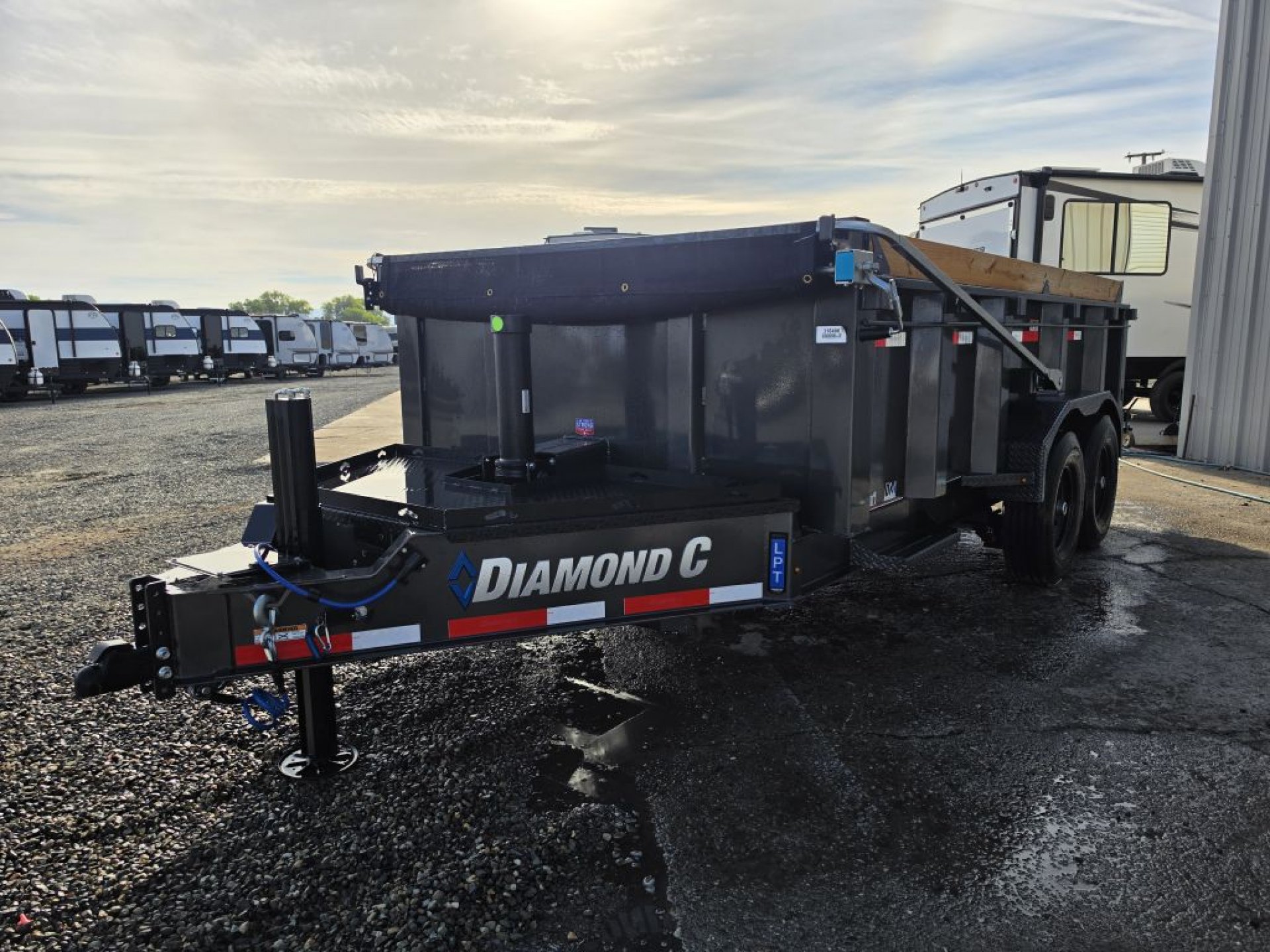

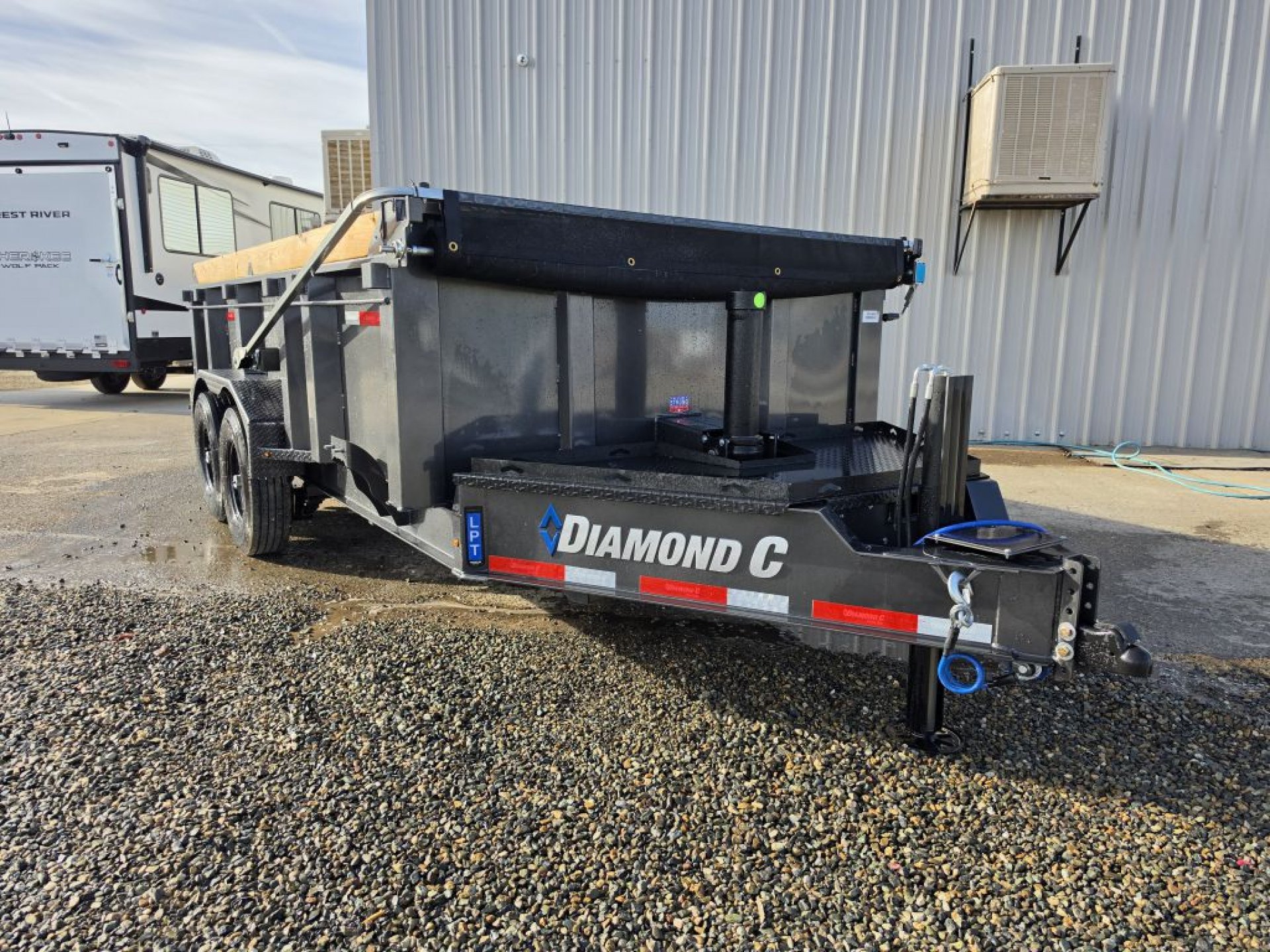

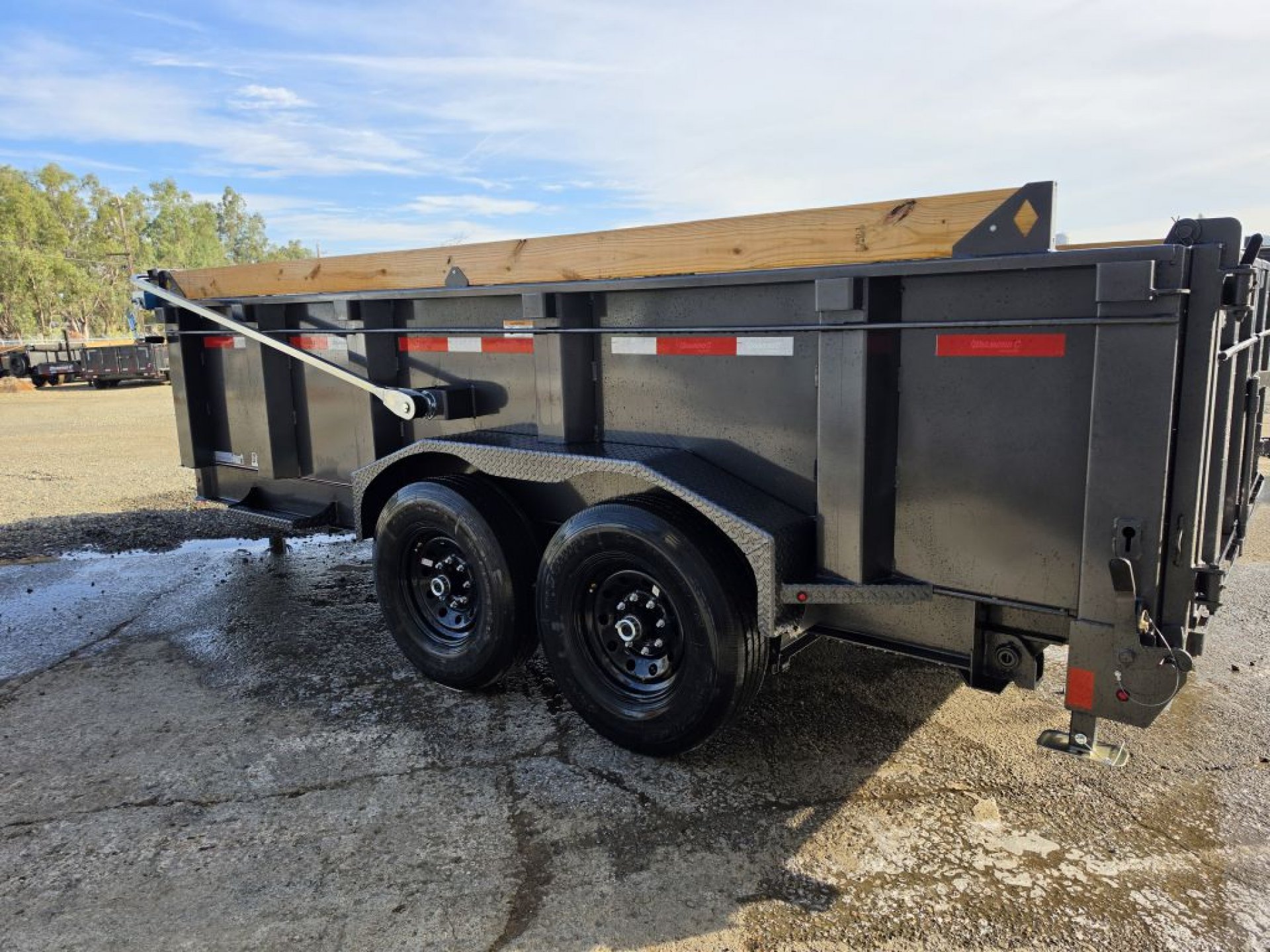

2026 PaceSetter LPT207 Low Profile Telescopic Dump Trailer – PaceSetter Edition
Built for serious hauling and demanding commercial applications, the PaceSetter LPT207 Low Profile Telescopic Dump Trailer combines a heavy-duty 14’ x 82” dump body, tandem 7K axles, 32” tall 10-gauge sides, and a powerful 5-stage hydraulic system. This PaceSetter Edition is loaded with premium features including a 20K hydraulic jack, Bluetooth wireless hydraulic controls, heavy-duty slide-in ramps, SolarPulse charging system, and an installed 20’ mesh tarp system.
Key Features & Equipment

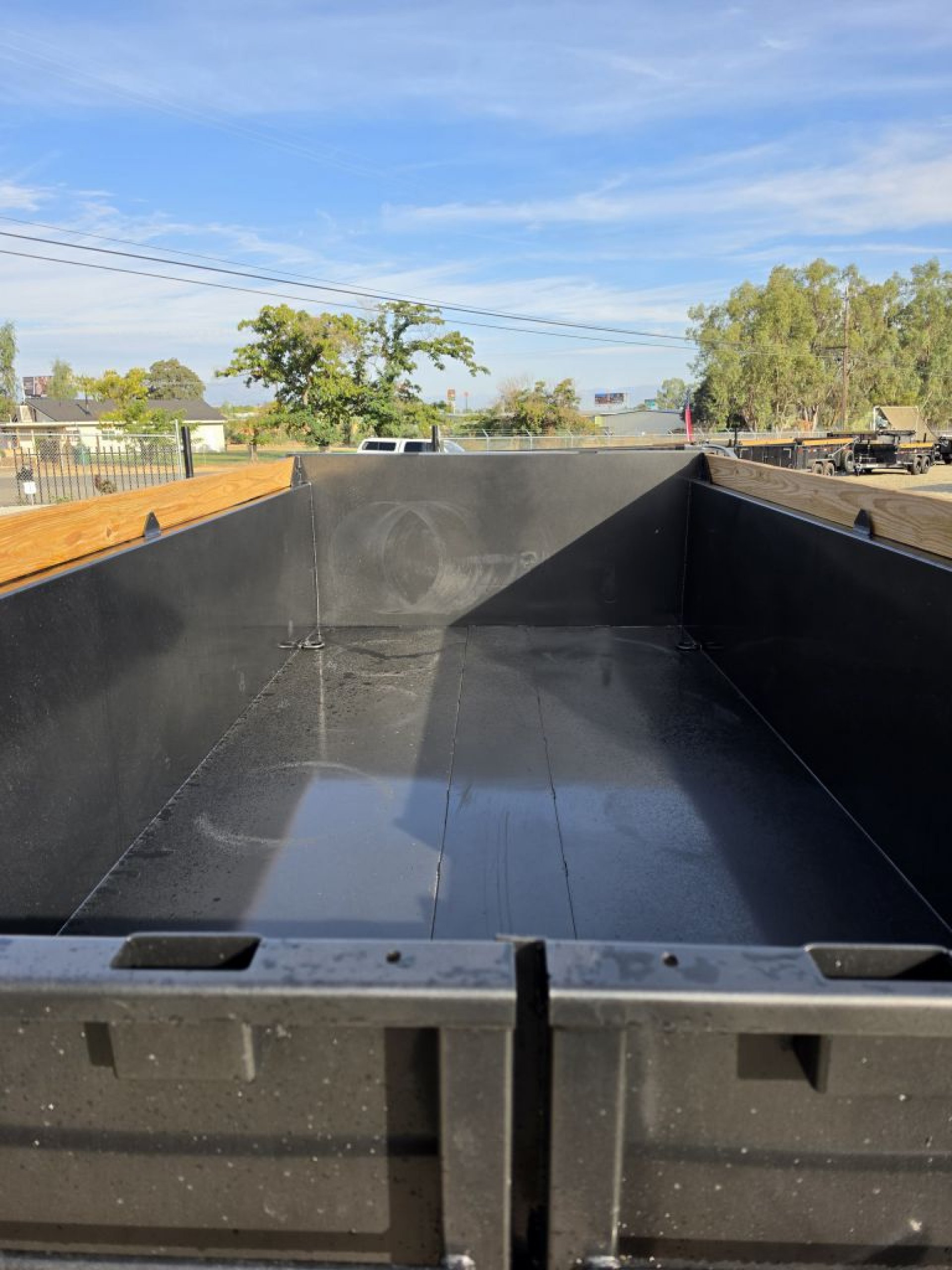

- 14’ x 82” dump body
- 32” tall 10-gauge integral steel sides and floor
- 3-way dump gate

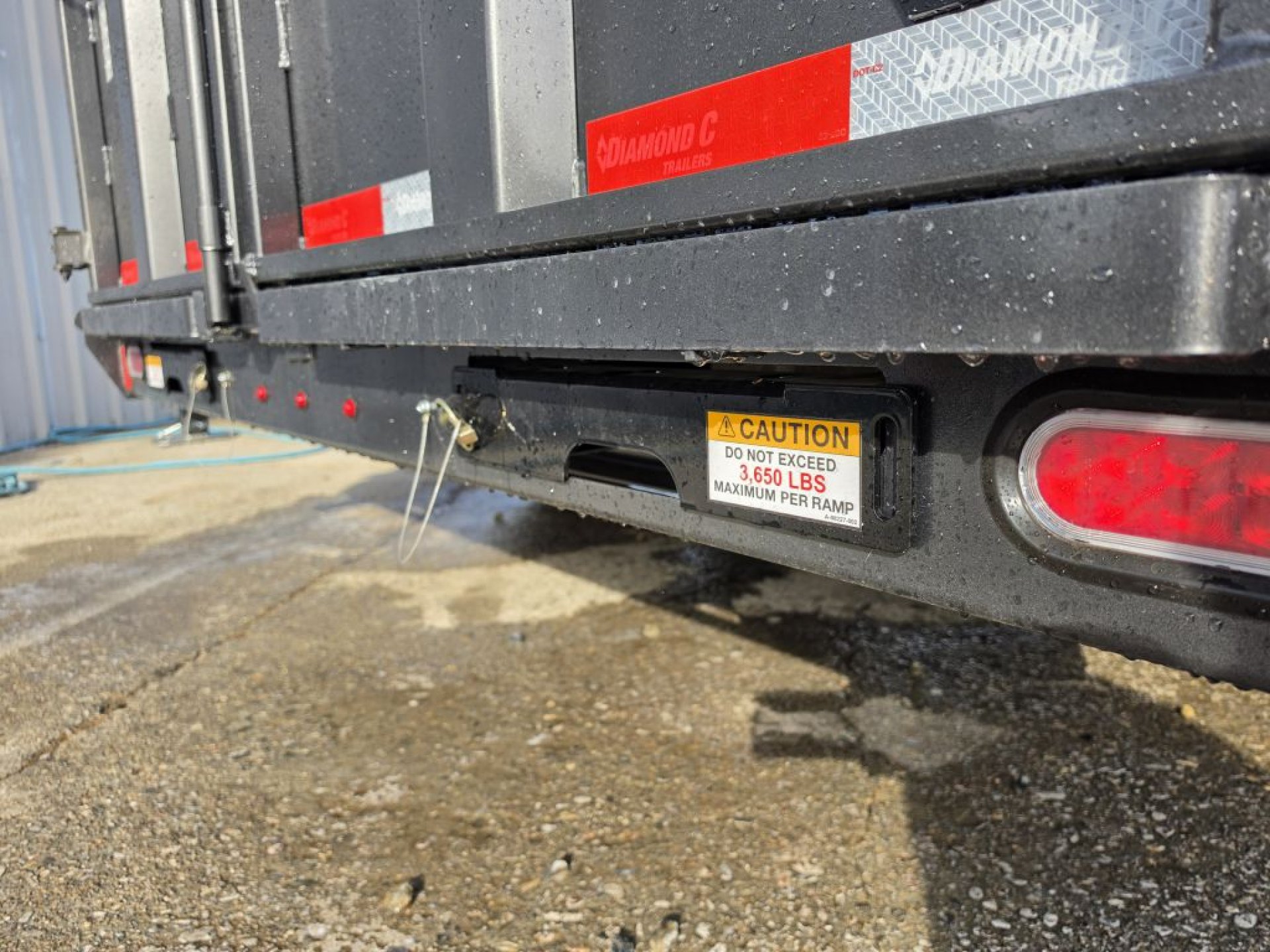

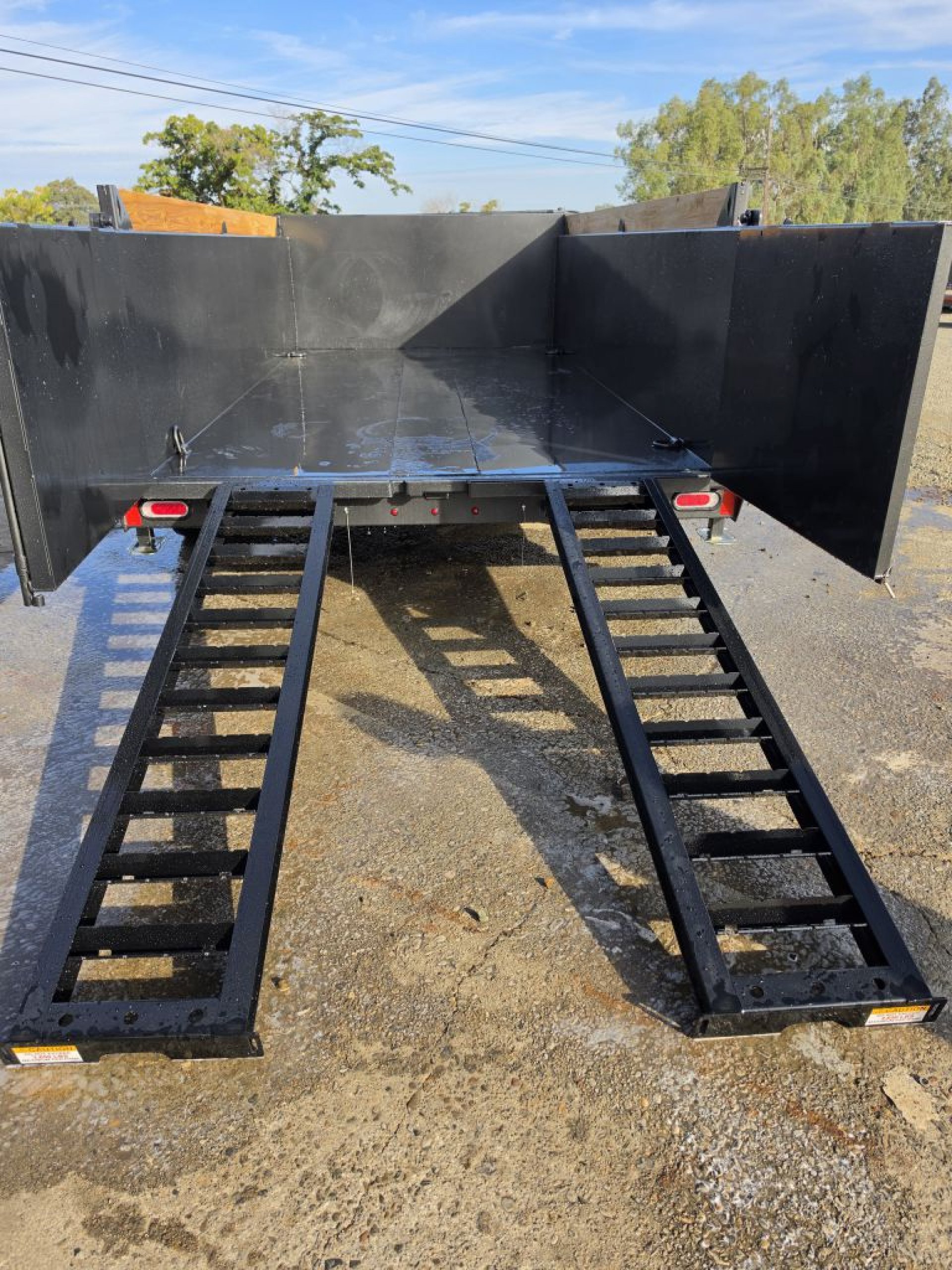

- 78” rear slide-in ramps constructed from 3” I-beam
- Raised front board brackets with boards
- Super heavy-duty 3/16” diamond-plate fenders
- 24” driver-side step
- Pair of drop-leg stabilizer jacks
- Single 20K hydraulic tongue jack
- Bluetooth wireless 4-button controller for hydraulic functions/jacks

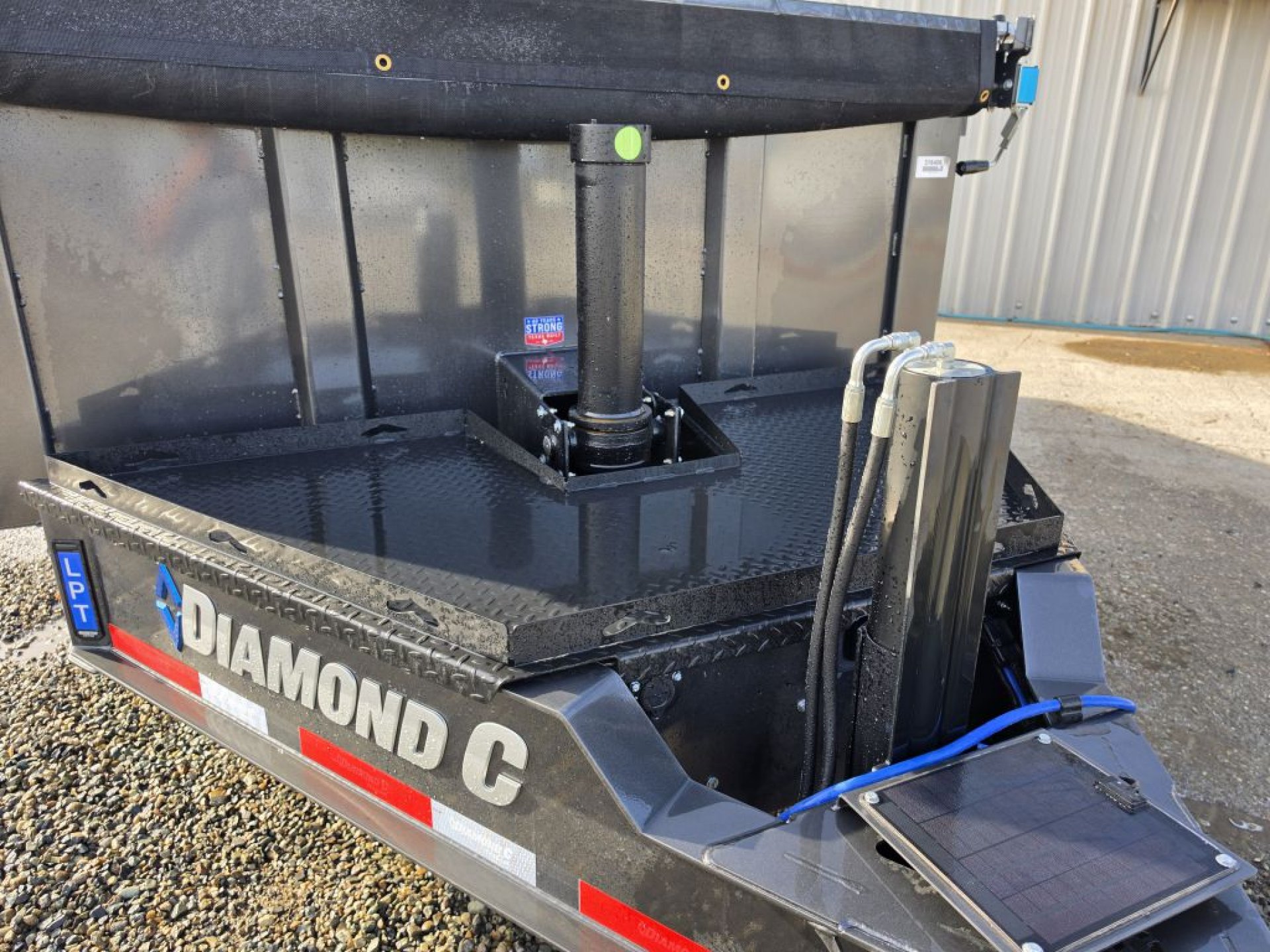

- 5-stage power-up / gravity-down hydraulic system
- Group 27 battery
- SolarPulse 7-watt charging system
- Four standard 5/8” D-ring tie-downs
- ST235/80R16 radial 14-ply tires with black 8-hole wheels
- Carbon Metallic Gray exterior
- All LED lighting
- 20’ heavy-duty black mesh tarp with long-arm tarp system
- Tandem 7,000-lb drop axles
- Electric drum brakes
- 6-leaf slipper roller spring suspension
- Engineered heavy-duty V-tongue with lid
- 2-5/16” 21K Demco EZ-Latch adjustable-channel coupler
- Heavy-duty 8” x 15-lb I-beam frame
- Crossmembers on 16” centers
- Spare tire mount on passenger/curb side
Model: LPT207
Series: PaceSetter Edition
Frame Size: L14 x 82
Axles: Tandem 7K
Brakes: Electric Drum
Color: Carbon Metallic Gray
A seriously equipped low-profile dump trailer designed for contractors, landscapers, equipment operators, property owners, and anyone who needs a rugged trailer capable of handling demanding loads. The combination of a 5-stage telescopic hydraulic system, 20K hydraulic jack, Bluetooth controls, heavy-duty ramps, and 14-ply tires makes this PaceSetter Edition ready to work.
